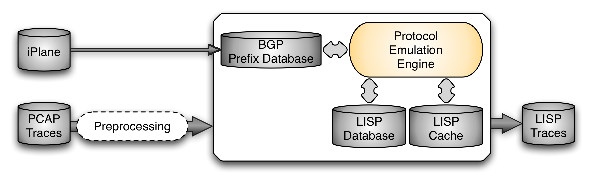

The LISP Cache emulator is software that is able to emulate the tasks of LISP xTRs and that is essentially designed to be fed with packet-level Internet traffic. Therefore, like a real LISP router, the emulator needs two data stores, namely the LISP Database and the LISP Cache.
The LISP Database is a manually configured list of internal network prefixes (EIDs), while the LISP Cache stores EID-to-RLOC mapping when there is a request for it and removes it according to the preconfigured expiration rule.
The emulator uses a local BGP prefixes database fed with the list of BGP prefixes published by the iPlane Project. This BGP prefixes database is used to group EID-to-RLOCs mappings with the granularity of existing BGP prefixes.
- Docker image: sudo docker pull darcy95/lispcache-emulator
- Source code: https://github.com/darcy95/lispcache-emulator
- Pull the docker image from the repository: sudo docker pull darcy95/lispcache-emulator
- For testing the code, you can record your own traces by using tcpdump or download publicly available pcap files from the Internet
- In this example, we will use pcap files downloaded from the project of github user markofu (thanks to markofu): git clone https://github.com/markofu/hackeire.git
- We will use hackeire/2011/pcap/c1.pcap file
- By examining the trace with tcpdump, we can find out that most of the origin IP addresses of non-multicast traffic can be aggregated as 10.20.0.0/24 and 220.127.116.11/24
- We assume that these two network prefixes are internal network prefixes of the two LISP xTR routers. Let's ignore the fact that 10.20.0.0/24 belongs to the private IP address block. We only want to test how this emulator works. In fact, for the real LOCator & ID separation routing, the source/destination IP addresses must be globally routable
- These two prefixes will be stored in the list-database file. The first column is the index of the xTR router and the second column is the network prefix
- So, it will look like following after we add the internal prefix information to the list-database file: 1 10.20.0.0/24
- Now, run an instance of the image as a background container: sudo docker run -d -it --rm --name lispemul darcy95/lispcache-emulator /bin/bash
- Then, feed the pcap file into the emulator: cat hackeire/2011/pcap/c1.pcap | sudo docker exec -i lispemul /bin/bash xTR.sh
- After feeding is done, you can find several log files in /logs inside of the container. Enter the container by invoking the following command: sudo docker exec -it lispemul /bin/bash
- You can also find the log files in the mounted directory on the host. The directory is typically the directory with a long long name under /var/lib/docker/volumes directory
- Read the DESCRIPTION file to find out what each column of the log files is.
- If you want to modify the experiment for your project (or research), check out the parameters of the script by invoking ./lispcache-emulator.pl --help and by examining xTR.sh batch script
